The face blasting case Barbara 5

The face blasting case Barbara 5

The face blasting case Barbara 5 is designed to store blasting agents and blasting equipment near the blasting site.



The product has a positive technical opinion of the Central Mining Institute.

The face blasting case Barbara 5
  • DESCRIPTION
  • TECHNICAL DATA
  • GALLERY

PLACE OF APPLICATION:

The product is suitable for use in underground and open cast mines

DESCRIPTION:

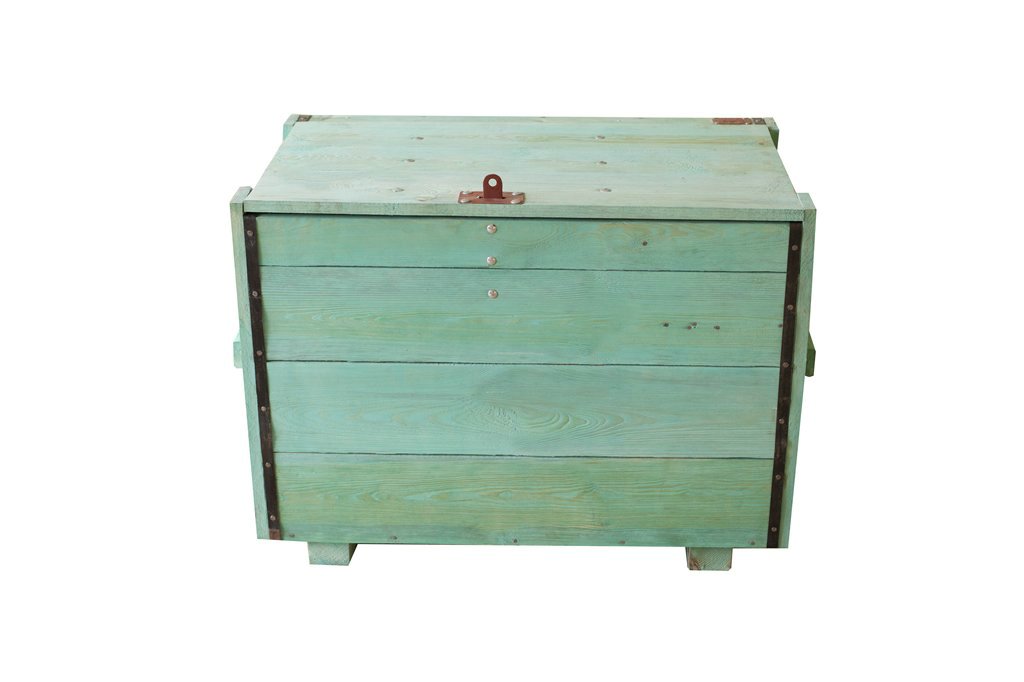

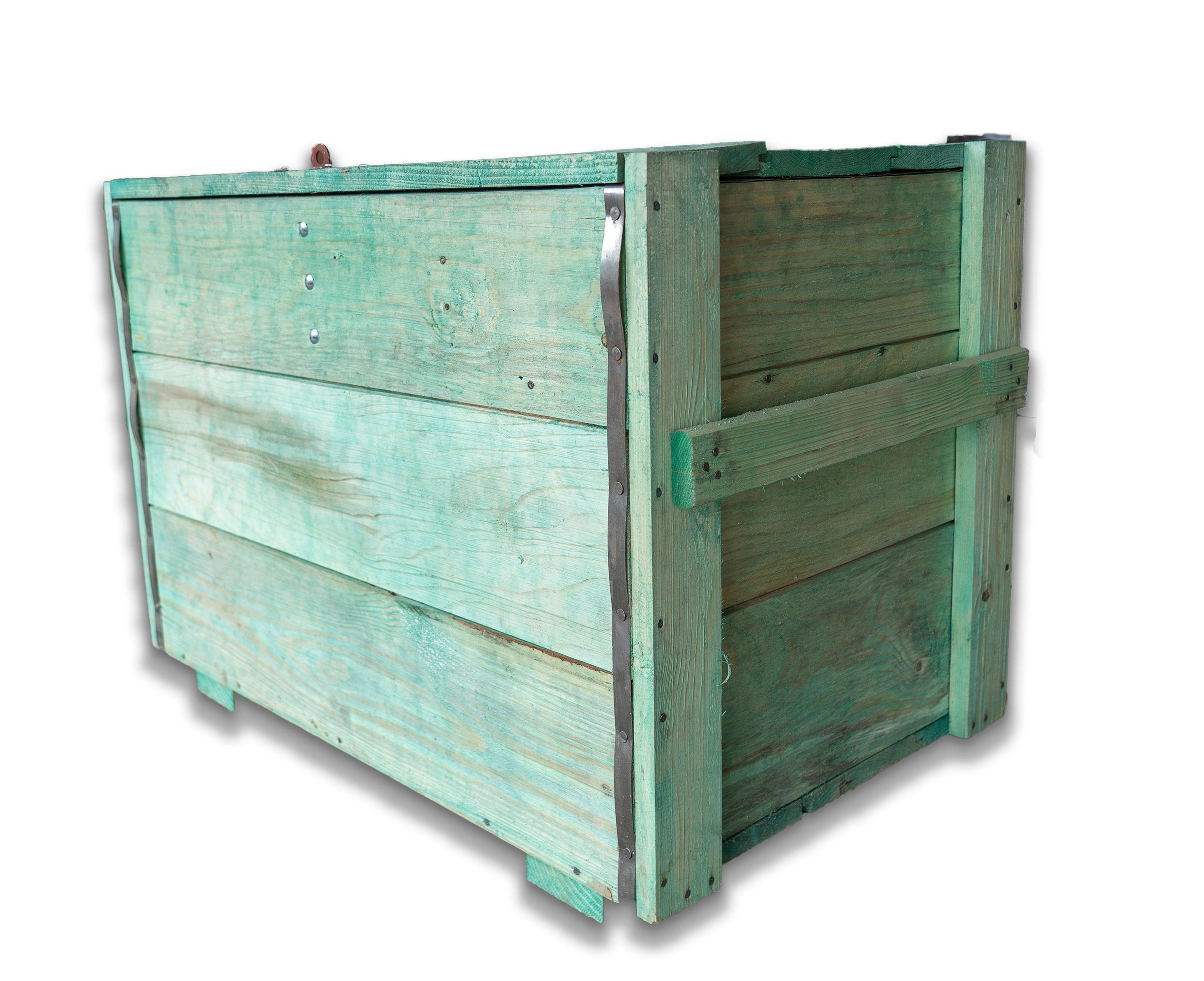

The case is made of planed and impregnated pine boards with a thickness of 22mm. The body of the case is wrapped with steel bands, the ends of which are hidden under the cover.

Two bottom blocks are nailed under the bottom of the case as prevention from getting it wet from the floor.

The inside of the case has three chambers, enabling proper storage of pouches with electric detonators, blasting boxes with explosives as well as blasting cables and blasting equipment.



Outer length [mm]: 874
Outer width [mm]: 490
Total height [mm]: 502



Capacity:

Blasting boxes:

  • 2 pcs. of big D, or
  • 5 pcs. of middle S, or
  • 8 pcs. of small M

Detonator pouches:

  • 2 pcs. of small Ø 80
