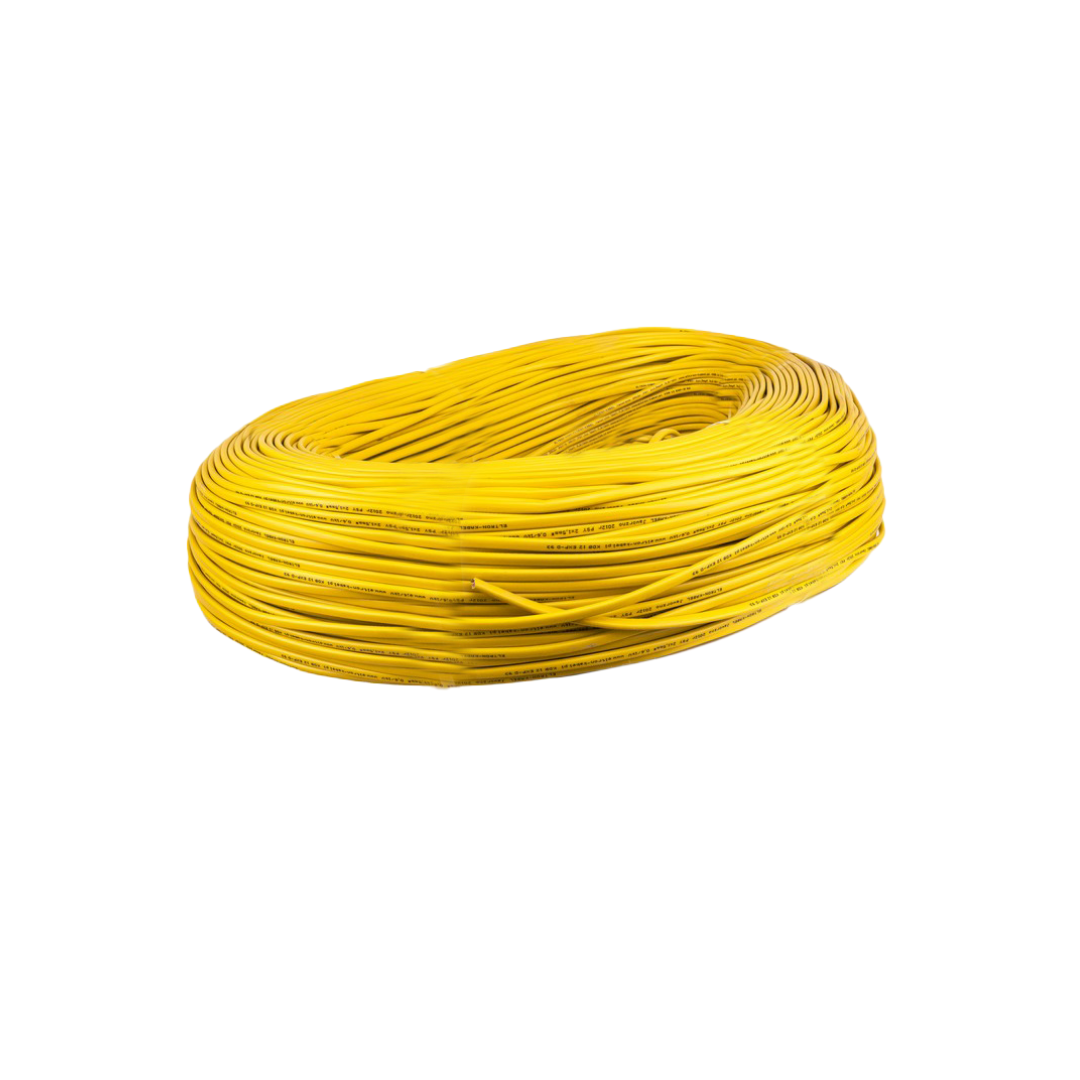

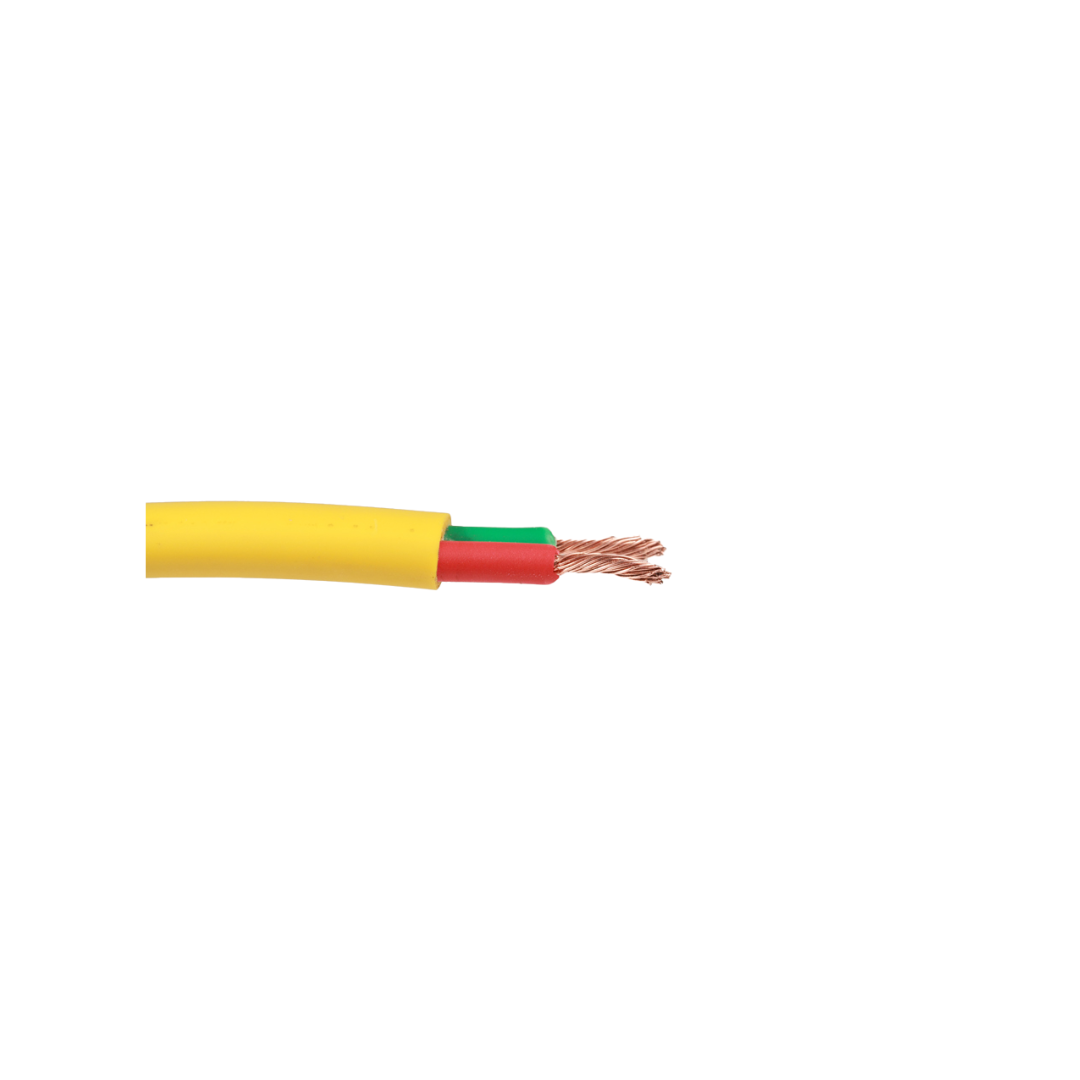

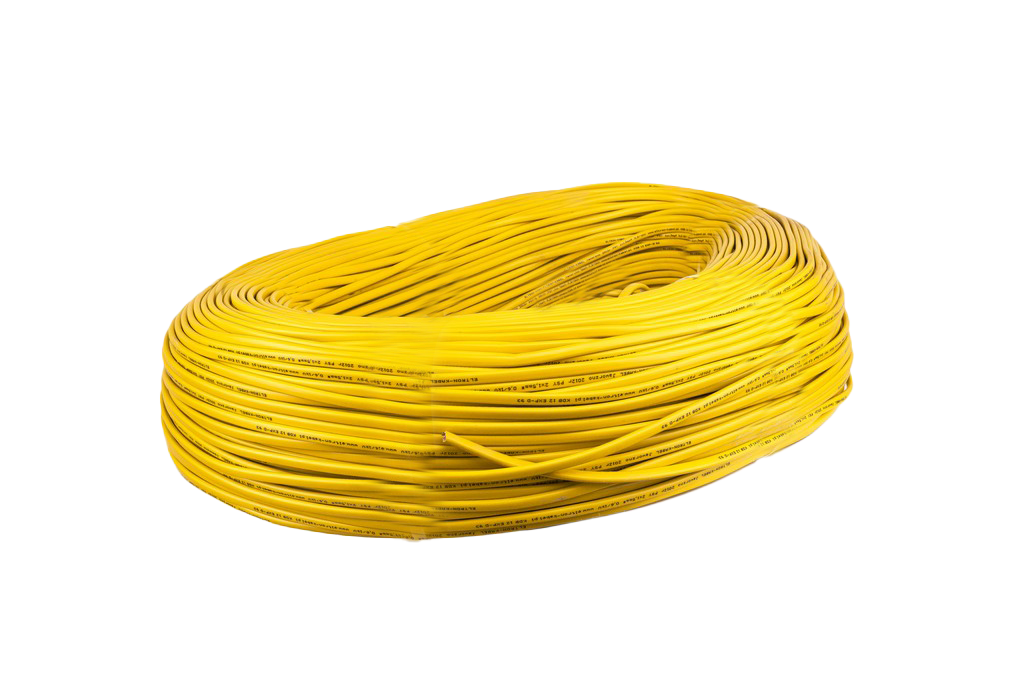

Blasting cable PSY 2 x 1.5 mm²/1 kV (Cu)
Blasting cable PSY 2 x 1.5 mm²/1 kV (Cu)
Blasting cable PSY is double-core with copper cores, intended for use in blasting works as a blasting line (for permanent or coiled blasting lines).
The product has a positive technical opinion of the Central Mining Institute.
PLACE OF APPLICATION:
Blasting cable PSY can be used in all mines where blasting works are carried out, including methane fields of all hazard categories.
| Nominal diameter of a core [mm]: | 1,75 |
| Nominal cross-section of a core [mm²]: | 1,50 |
| Outer size of a cable, max. [mm]: | 9,5 x 5,8 |
| Nominal thickness of insulation [mm]: | 0,8 |
| Number of cores in a cable: | 2 |
| Resistance of a single core: | 1,10 Ω / 100 m |
| Colour of insulation:: | red and green |
| Colour of outer coating: | yellow |
