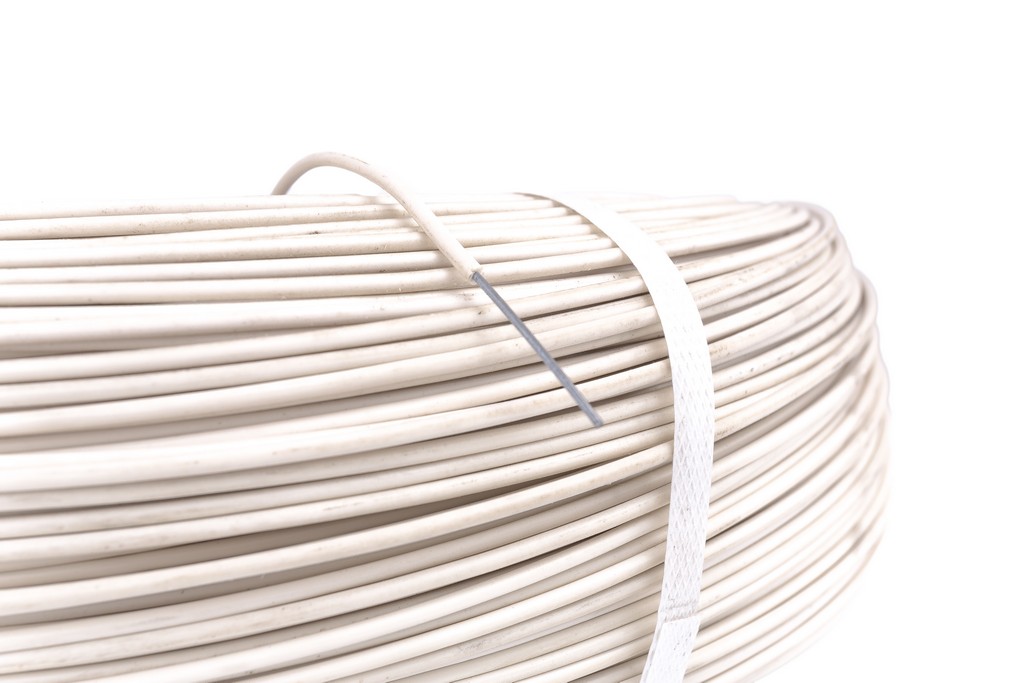

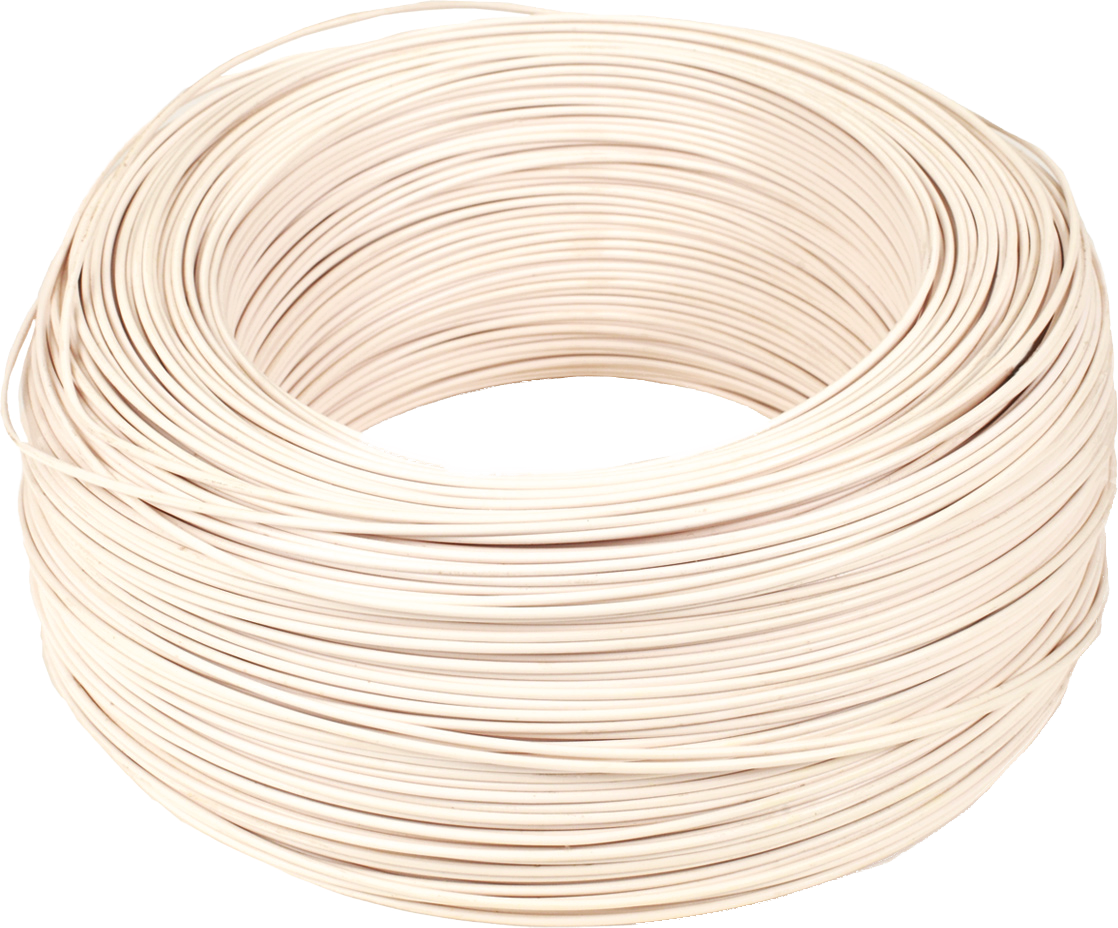

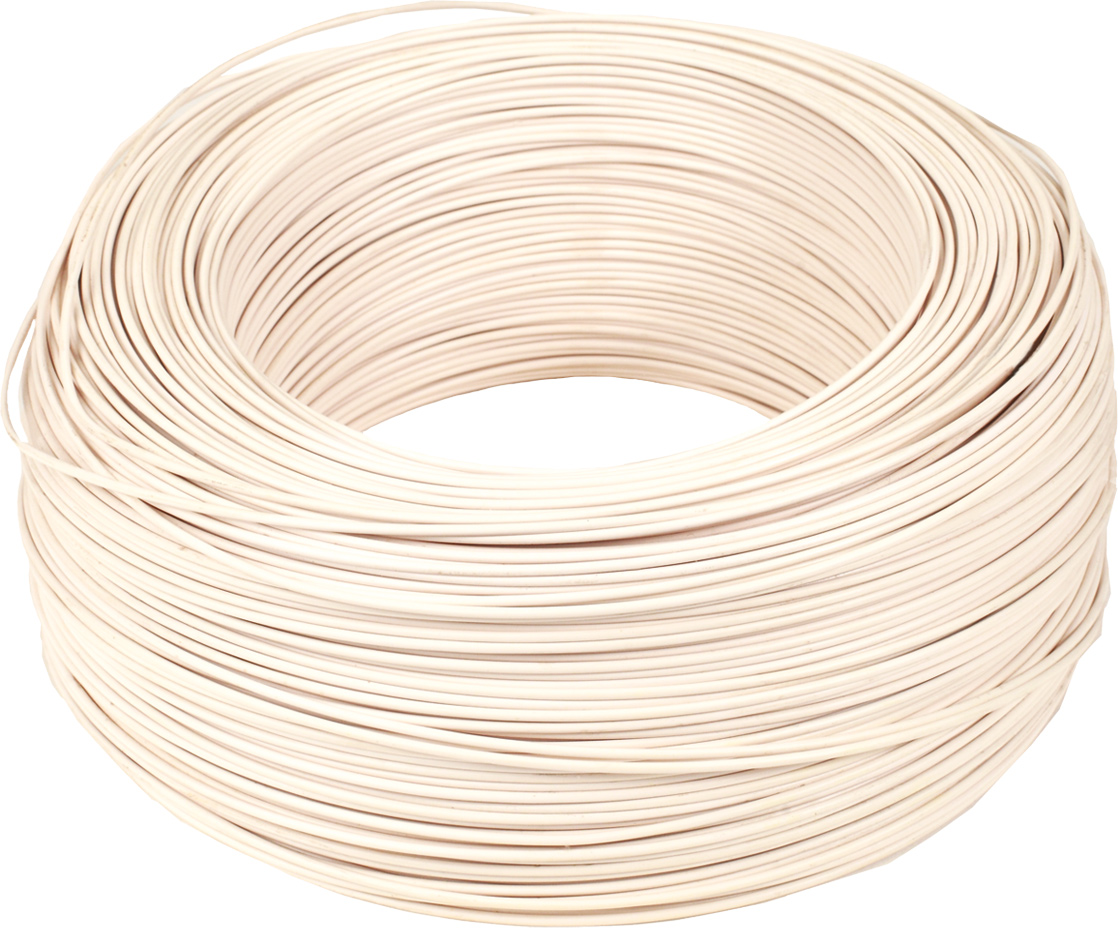

Blasting cable SY 1 x 1.2 mm (Fe)
Blasting cable SY 1 x 1.2 mm (Fe)
The SY cable is intended for use in blasting works as a protective blasting cable to connect the circuit of electric detonators with the blasting line in the face and to make permanent blasting lines, suspended on insulators or insulating elements.
The product has a positive technical opinion of the Central Mining Institute.
PLACE OF APPLICATION:
The SY blasting cable can be used in all mines where blasting works are carried out, including methane fields of all hazard categories.
| Nominal diameter of a core [mm]: |
1,2 |
| Nominal cross-section of a core [mm²]: |
1,13 |
| Nominal thickness of insulation [mm]: | 0,8 |
| Number of cores in a cable: |
1 |
| Core: | steel, galvanized |
| Colour of insulation: |
white |
| Resistance of a single core : | max. 2,0 Ω / 100 m |
| Permissible voltage of the blasting machine [V]: | 1500 |
